1. Patent gearbox and torque converter: Save 25% oil consumption.
2. Split structure gearbox and torque converter: Decrease 30% working temperature which can ensure a longer service life of the hydraulic components.
3. Three-stage air filtration technology: Effectively protect engine to prolong 30% engine life.
4. Double High and Low Walking Speed System: National patent system
QUOTATION LIST | |||||

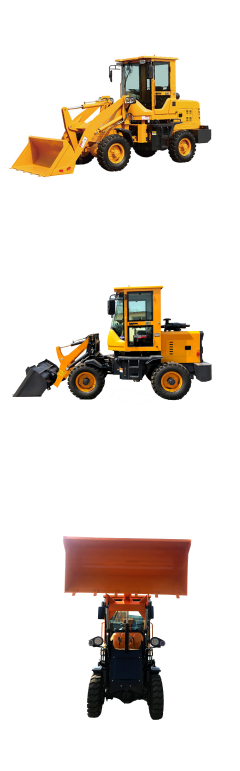

Overall Performance/Models整体型号 | Unit | LC916 | Picture | ||
General Machine Performance | Operating weight | kg | 2100 |  | |
Length | mm | 4500 | |||
Width | mm | 1530 | |||
Height | mm | 2450 | |||
Wheel base | mm | 1820 | |||
Wheel track | mm | 1300 | |||
Total cycle time | s | 9 | |||
Tire size | size | 7.50-16 | |||
Max.travelling speed | km/h | 35 | |||
Bucket Performance | Loading weight | kg | 600 | ||
Standard bucket capacity | m3 | 0.35 | |||
Possible Bucket capacity | m3 | 0.35-0.7 | |||
Bucket width | mm | 1530 | |||
Dumping height | mm | 2300 | |||
Dumping reach | mm | 760 | |||
Max. lifting height | mm | 3400 | |||
Transmission Performance | Transmission type | name | automatic | ||
Control type | kw | mechanical | |||
Axle | type | 130 drum brake | |||
Engine Performance | Brand | name | YN25GB | ||
Power | kw/ rpm | 37 | |||
Rotate speed | rpm | 2400 | |||
Number of cylinders | unit | 4 | |||
